How to Connect an Arduino Circuit

Short Answer:
The most common mistake when connecting an Arduino circuit is not understanding how the pins on a breadboard are connected.
On a breadboard, some pins are connected horizontally, others vertically, and the + / – power rails work separately.

Beginners often face problems like:

  • “My circuit is not working”
  • “The LED does not turn on”
  • “The code is correct, but nothing happens”

This page explains:

  • How a breadboard works
  • How + and – power rails operate
  • How horizontal and vertical connections are made
  • The most common Arduino wiring mistakes

in a clear and beginner-friendly way.

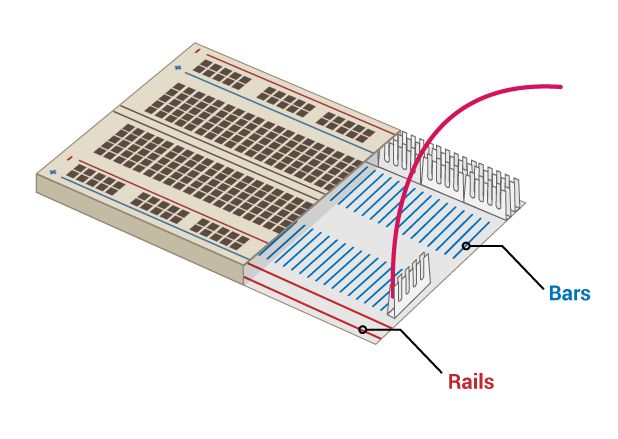

What Is a Breadboard?​

A breadboard is a solderless prototyping board that allows you to build electronic circuits without soldering.
It is used in almost every Arduino beginner project.

bread board

Using a breadboard:

  • Components like LEDs, resistors, and sensors are easy to connect
  • Mistakes can be fixed quickly
  • The risk of damaging components is reduced

Breadboard Sections Explained​

A standard breadboard has three main sections:

  1. Top power rails (+ / –)
  2. Bottom power rails (+ / –)
  3. Middle connection area (pin rows)

How Do + and – Power Rails Work?​

The red (+) and blue (–) lines on the sides of the breadboard are called power rails.

  • They are used to distribute power
  • All holes on the same rail are electrically connected

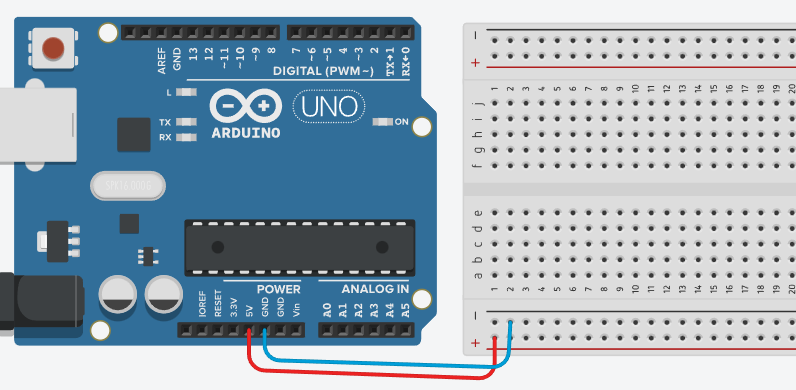

  • Arduino 5V and GND pins are usually connected here

5v and gnd

📌 Example:

  • Arduino 5V → + rail
  • Arduino GND → – rail

⚠️ Common mistake:
Assuming the top and bottom power rails are automatically connected
→ In most breadboards, they are NOT connected

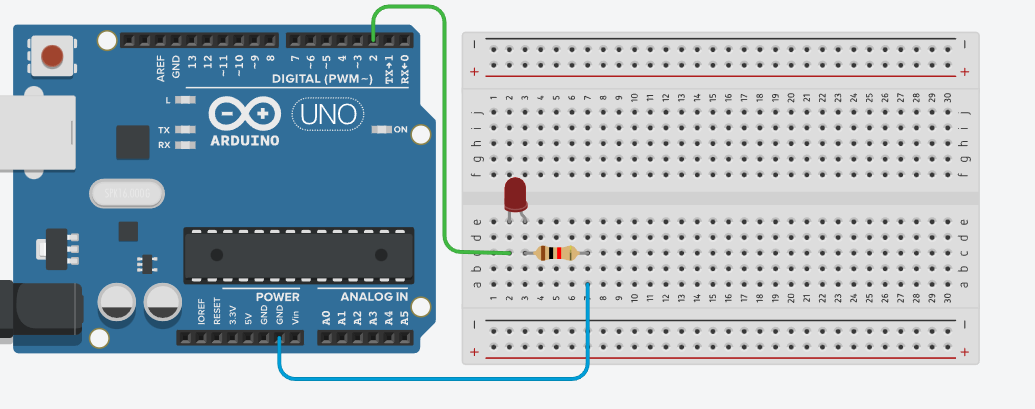

How Does the Middle Section Work? (Rows & Columns)​

In the middle section of the breadboard, pins are connected horizontally.

breadboard middle section

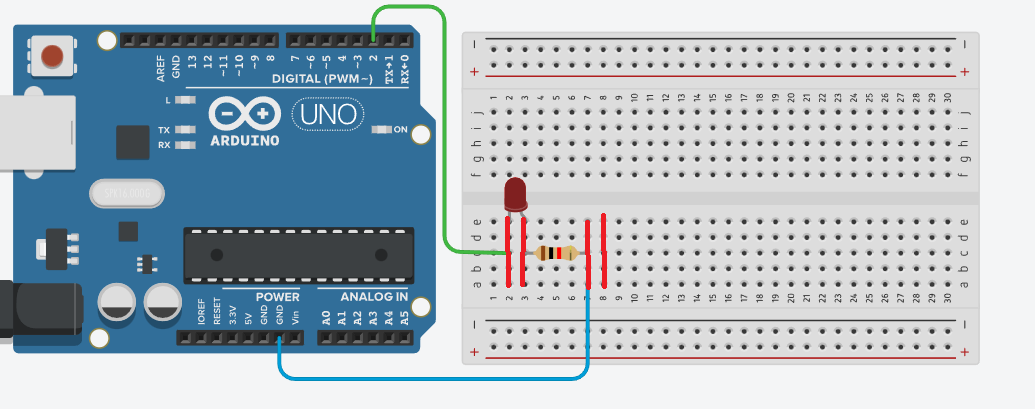

As shown below, each horizontal row is internally connected.

horizontal connection

Connection logic:​

  • The 5 holes in the same row are connected
  • There is no vertical connection
  • The center gap separates the left and right sides

📌 This means:

  • Components placed in the same row are electrically connected
  • Components in different rows are not connected

Most Common Arduino Breadboard Mistakes​

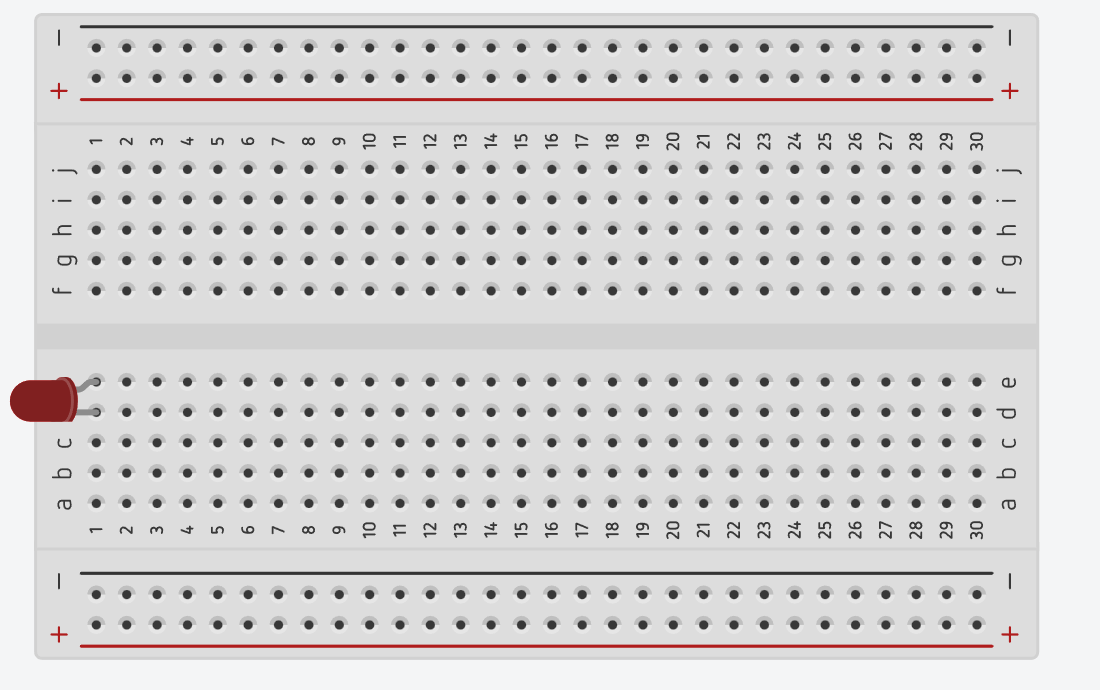

❌ 1. Placing LED legs in the same row​

➡ Creates a short circuit, the LED will not light up
LED legs in same row

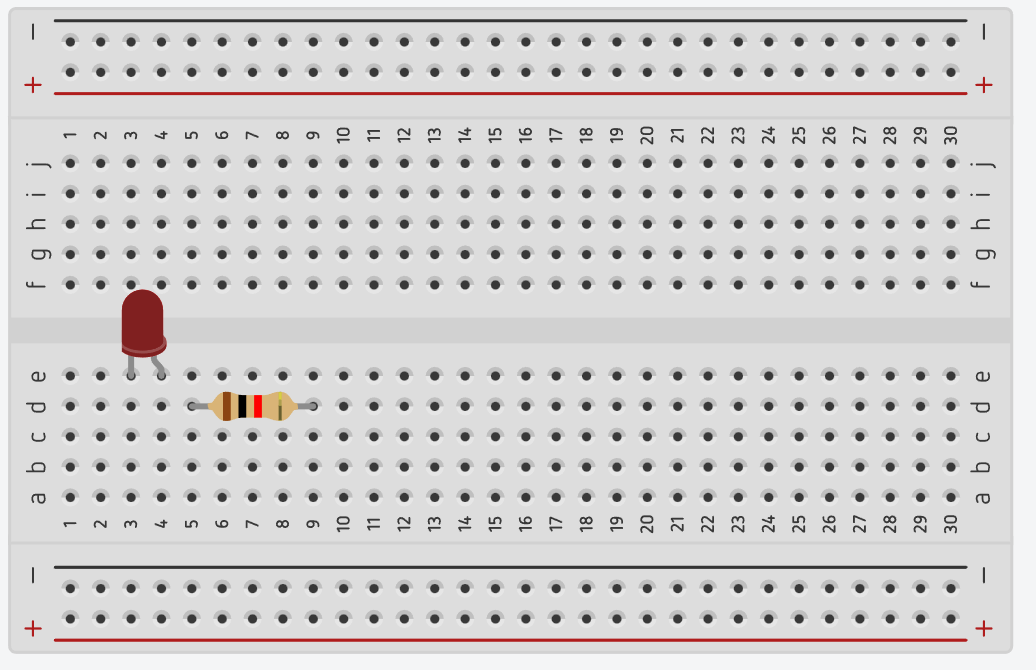

❌ 2. Placing the resistor in the wrong row​

➡ The circuit is not completed
Wrong resistor placement

❌ 3. Forgetting the GND connection​

➡ The circuit will not work (very common)

❌ 4. Connecting + rail directly to – rail​

➡ May damage the Arduino

❌ 5. Not realizing the power rail is broken​

➡ Top rail works, bottom rail does not

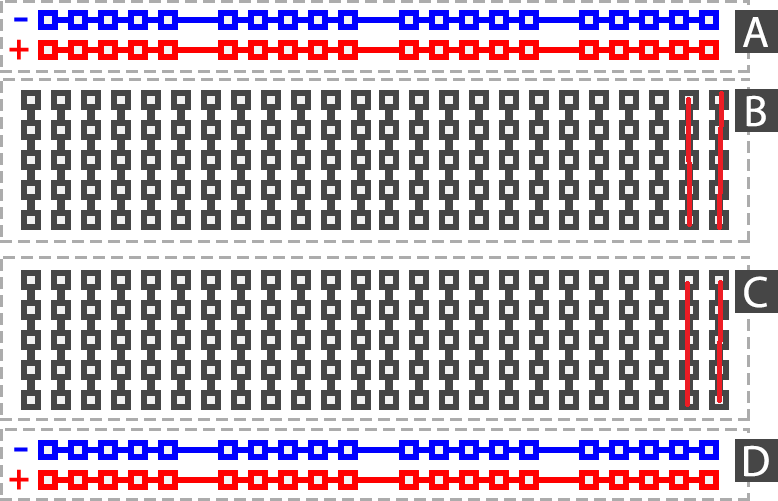

❌ 6. Not understanding horizontal connections​

➡ The middle section works horizontally, not vertically

Each leg of a component must be placed in different rows.

Breadboard structure mistake

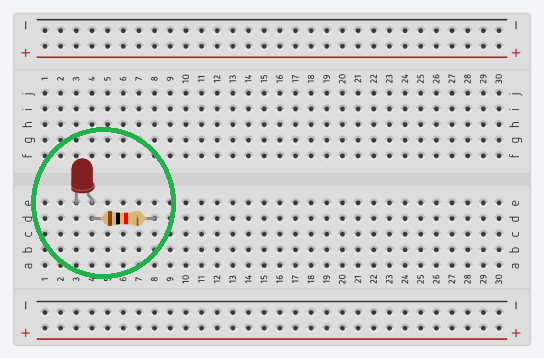

Below is a correct LED + resistor connection example.
One leg of the LED and one leg of the resistor must share the same row to complete the circuit.

Correct wiring

Arduino Circuit Not Working? Checklist​

Quick Troubleshooting Checklist​

  1. Is GND connected to the Arduino?
  2. Is the LED polarity correct (+ / –)?
  3. Is the resistor connected in series?
  4. Are the components in the correct rows?
  5. Are the + / – rails connected correctly?

Conclusion​

The most common reason Arduino circuits fail is misunderstanding breadboard pin connections.
If horizontal connections or power rails are used incorrectly, the circuit will not work.

Once you understand how a breadboard works:

  • Circuit building becomes faster
  • Hardware errors are minimized
  • Arduino projects become more reliable and enjoyable

👉 A successful Arduino project always starts with
correct breadboard wiring.
